Hollow Fiber Membrane

Chemical corrosion resistance, oxidation resistance, and light aging resistance

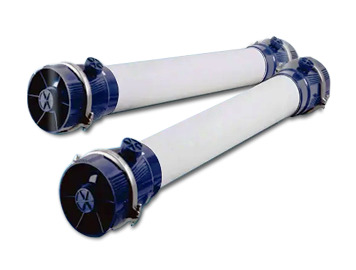

Hollow Fiber Membrane Modules

Chemical corrosion resistance, oxidation resistance, and light aging resistance.


Product mix

Simple structure, reasonable design, easy installation and disassembly, and easy online cleaning.



Product Features

High purified water flow rate, easy to clean, and long service life; Stable water production quality; Low energy consumption.



Application Market

Widely used, suitable for surface water purification, groundwater purification, drinking water purification, wastewater treatment and reuse, seawater desalination pre-treatment, reverse osmosis purification water pre-treatment, continuous microfiltration system (CMF), and bidirectional filtration system (TWF).


Module

HUF-0615E

HUF-0815E

HUF-1015E

Effective membrane area (㎡)

40

65

80

Membrane material

PVDF

Nominal aperture (μm)

0.1

Membrane inner/outer diameter ()

0.7/1.3

Filtering method

External   pressure

Shell material

UPVC/ABS

Sealing casting material

Epoxy   resin

Maximum   intake pressure (MPa)

0.1

Maximum   inlet pressure (MPa)

0.3

Maximum   inlet turbidity (NTU)

10

Trans membrane   pressure difference (MPa)

≤0.12

Operating   temperature ()

545

PH range   (operating)

110

PH range   (cleaning)

112


Applications
Technical resource
UNISOL firmly believes that quality is the soul of products
Strictly observe every standard, every process of production, every detail of service
Create maximum value for customers
UNISOL provides professional and thoughtful research and development consulting services for filter membrane components, warmly welcome your consultation.
